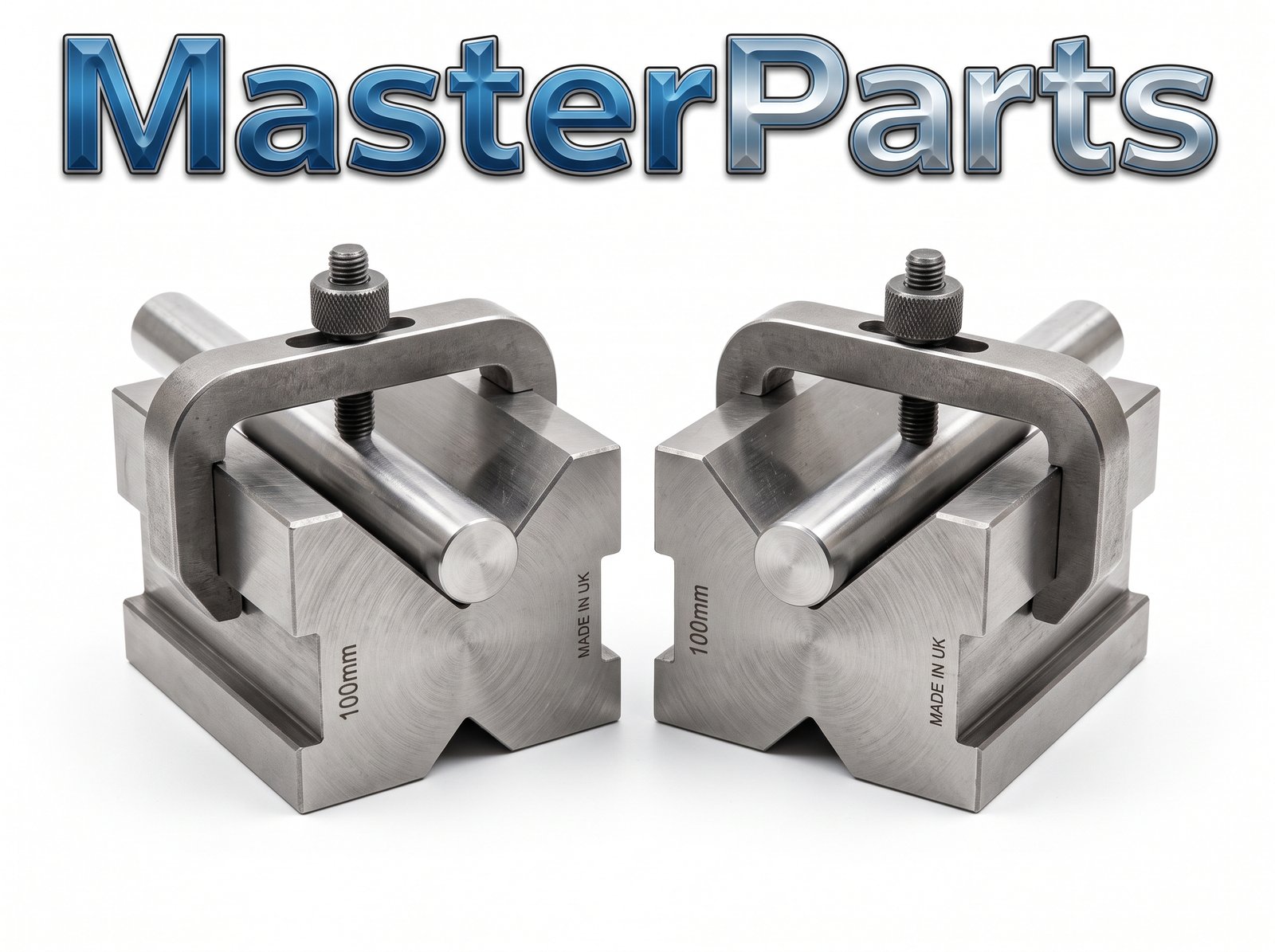

V-Block Pair 100mm with Clamps
Part Number: JF-00030
Price on request
Available to order
Matched pair of hardened 100 mm V-blocks with clamps, for holding round work.
Specifications
| Block length | 100 mm |
| Vee angle | 90° |
| Capacity | 5 - 60 mm diameter |
| Accuracy | 0.01 mm |
| Hardness | 58 - 62 HRC |
| Supplied as | Matched pair with clamps |
Description
A matched pair of hardened and ground V-blocks with clamps, for holding round stock for drilling, milling or marking out. The 90° vee centres a shaft automatically regardless of its diameter, which is what makes cross-drilling a round part repeatable — clamped in flat vise jaws the same shaft rolls, and the hole comes out off-centre. Supplied as a matched pair so long work can be supported at both ends at the same height.
